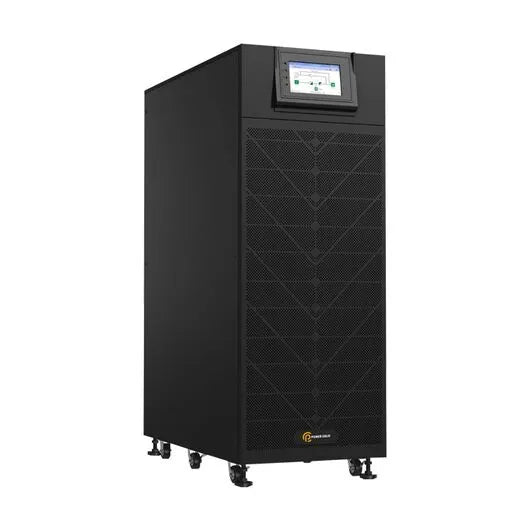

10kVA/9kW Online UPS Tower | N+X Redundancy | 0.9 PF
• -High Power Density: Provides 9000 W of real power from 10000 VA capacity, resulting in a High Output Power Factor of 0
• 9 PF (Watt/VA ratio)
• This means it can support more modern IT equipment that often requires a higher power factor
• -Pure Power Output: Utilizes Online double conversion with DSP control (Digital Signal Processor) to constantly supply clean, pure sine wave power, with zero transfer time to battery
• -Low Harmonic Distortion: The Input current harmonic is <3%, indicating the UPS is extremely clean and doesn't pollute the building's electrical system
• -Wide Tolerance: Operates effectively with a Wide input voltage range (120 - 276 Vac) and a Wide input frequency range (45 - 55 Hz / 54 - 66 Hz), reducing battery usage and prolonging battery life in areas with unstable utility power
• -N+X Parallel Redundancy: Supports parallel operation, allowing you to connect multiple units for increased capacity or to provide fault tolerance (redundancy)
• The system will continue to operate even if one unit fails
• -Generator Support: Specifically designed to support generator input, handling the frequency and voltage fluctuations typical of generator power
• -High Availability: Supports cold start (powering up the load using batteries without utility power) and features a Self-testing function at startup to ensure reliability
• -Warranty: Comes with a 2 Year Warranty on the unit and 1 Year on the battery
• -Eco Mode: Includes an Eco mode to improve operational efficiency by bypassing the double conversion process when the input power is stable, reducing energy consumption and operating costs
• -Rotating LCD Display: A user-friendly Rotating LCD Display provides real-time status and metrics, allowing for flexible installation (e
• g
• , in a cabinet or as a tower)
• -Standard Ports: RS232 and USB for local monitoring and shutdown
• -Optional Ports: Supports optional cards for advanced management, including SNMP card (for network monitoring), Parallel card (required for redundancy), and Relay card (for dry-contact status signals)
• -Terminal Port: Uses a Terminal Port for secure hardwired input and output connections
